Provides ultra-precision measurement for passive optical components, achieving 3σ ≤ 0.1 μm repeatability for stable, reliable optical alignment verification.
Dimension (inch): 76.4 (L) x 33.5 (W) x 68.2(H)
Weight: 970 Lb

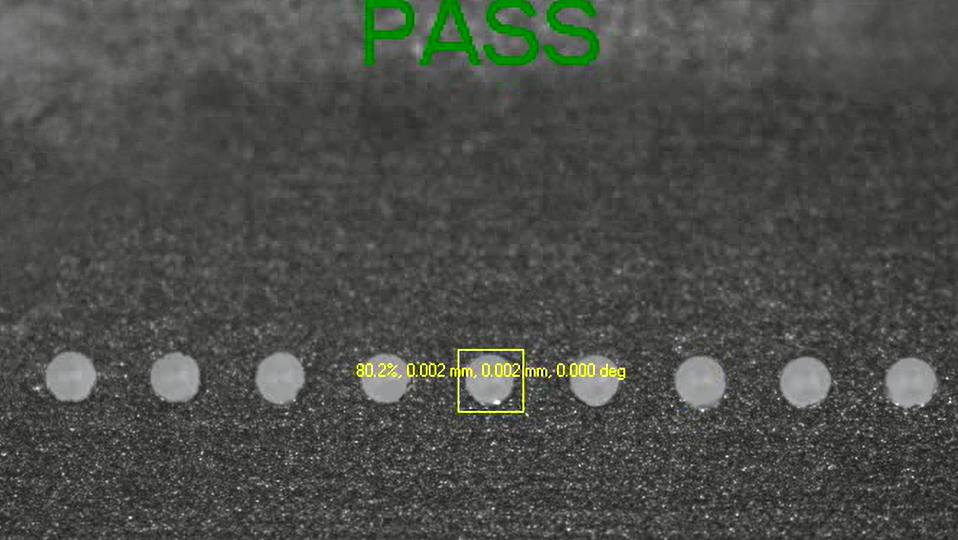

Repeat Measurement Precision: 3σ≦0.1μm

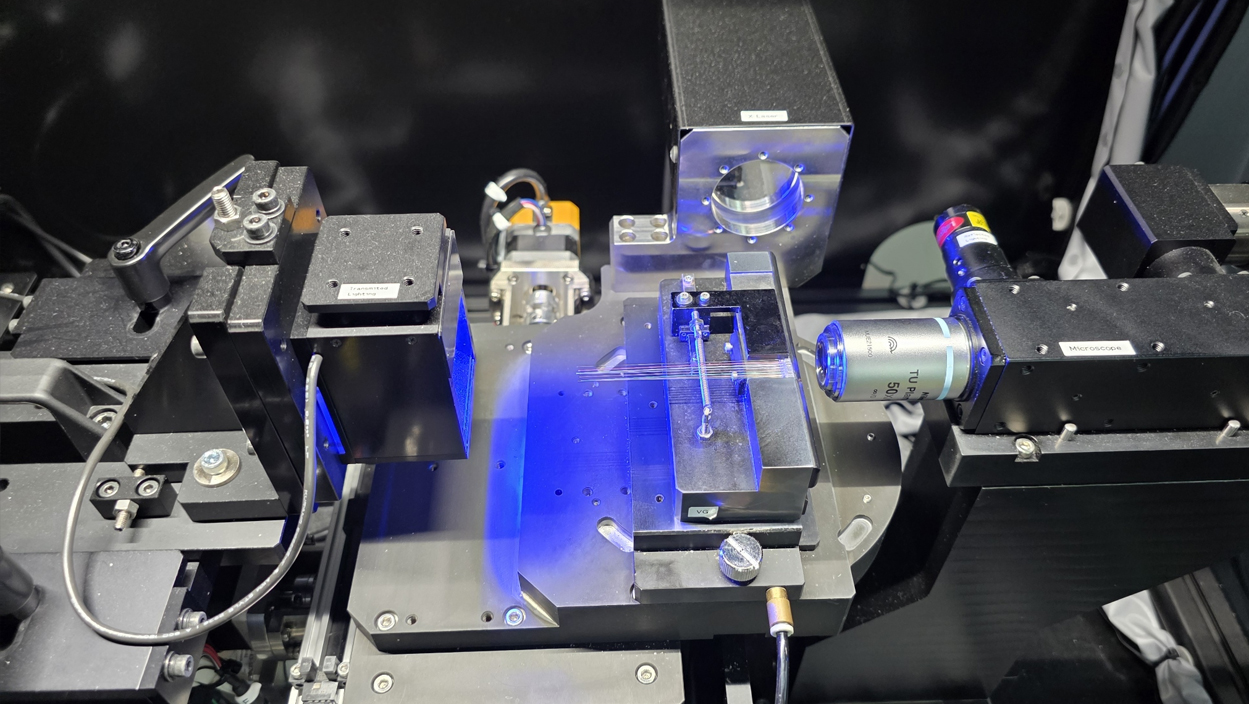

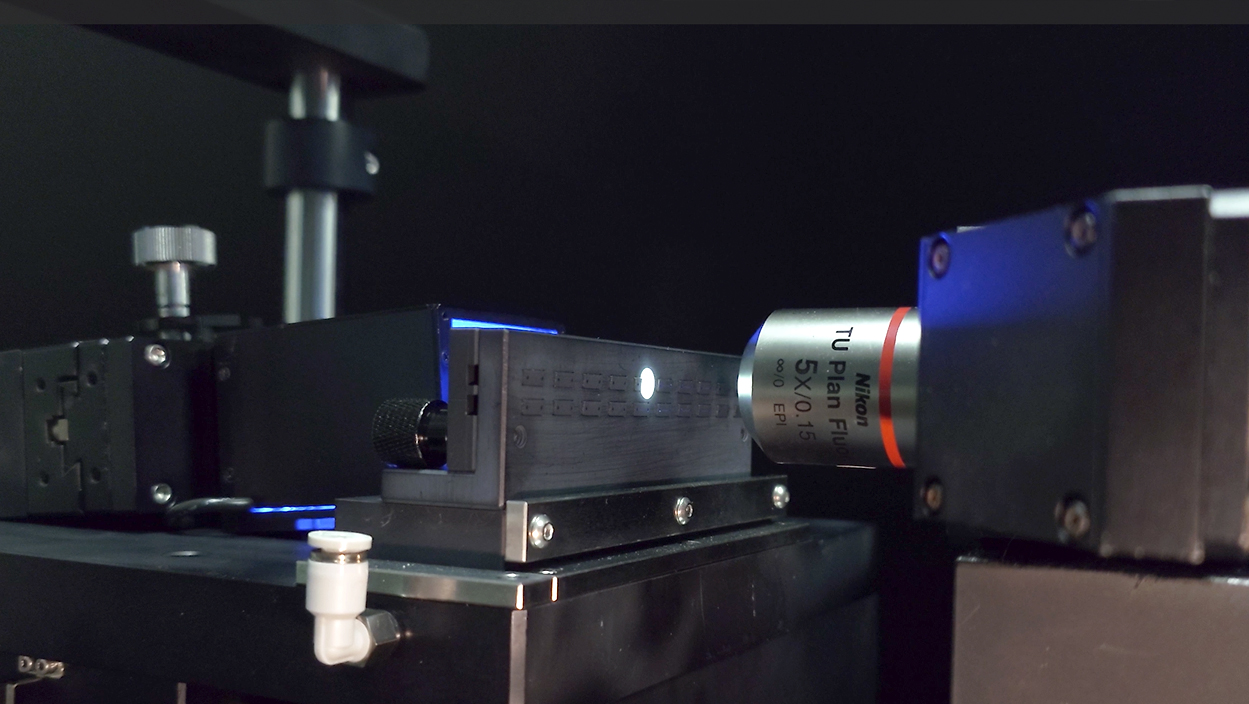

Measurement Subject: FAU, Fiber Array, V-Groove, MT/MMC
CCD: 5472 × 3648 Pixels
PC System: Windows 11
Measurement Time: 1 – 2 sec/1 core, 1 groove
Auto X,Y,Z stage: X-axis: 100mm, Y-axis : 4mm, Z-axis: 4mm
