DRAM Module AOI Inspection Machine

DRAM Module Appearance AOI Inspection Machine

Automates 25 visual checks of DRAM PCB labels, gold fingers, surfaces and component placement, then sorts by result to reduce manual inspection.

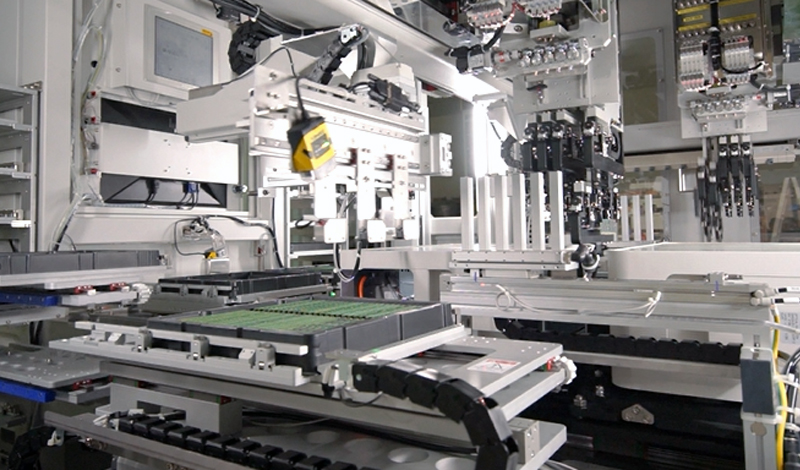

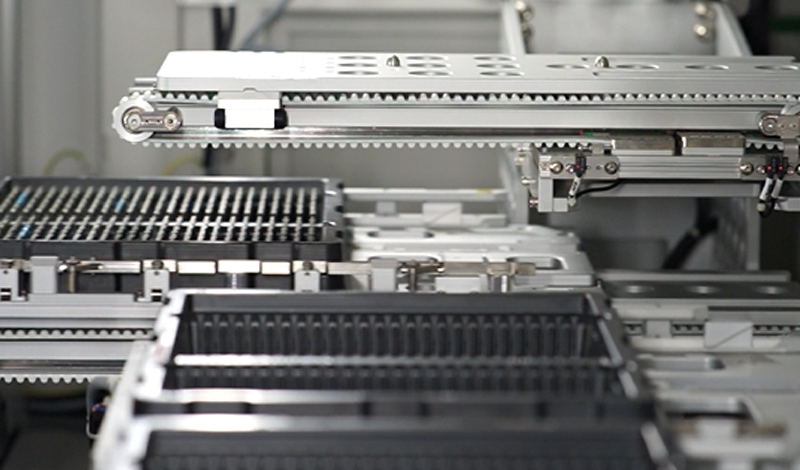

Automated Handling & Inspection: Handles up to 16 trays with automated PCB inspection and sorting.

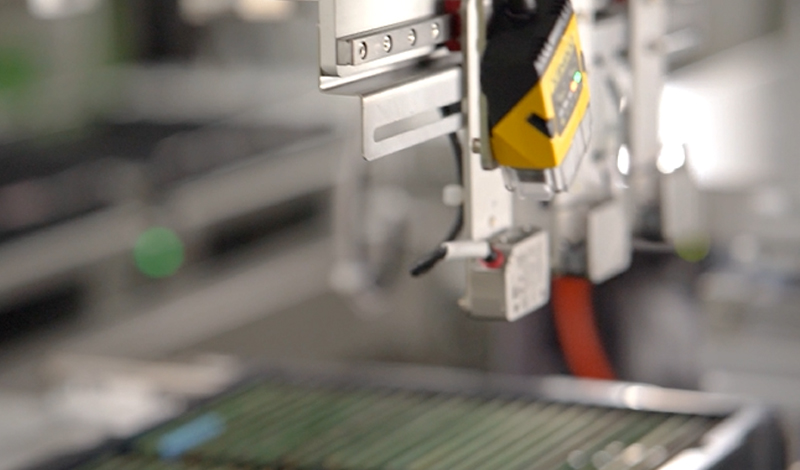

25 AOI Inspection Checks: 8K line-scan cameras combines AOI and AI for 25 visual checks.
Barcodes Traceability: Links results to PCB barcodes for defect lookup with a scan.

‍Dimensions (inch): 108.27 (L) × 98.43 (W) × 80.71 (H)

‍CCD: 10 μm/pixel

‍Weight: 9,700 lb

Measurement Subject: RDIMM / SODIMM / UDIMM / VLPDIMM

‍Measurement Time: 5.91 in/sec

Power Supply: AC 220V 75A

‍FOV: 3.22 in

‍Cycle Time: 2.5 sec/pcs
